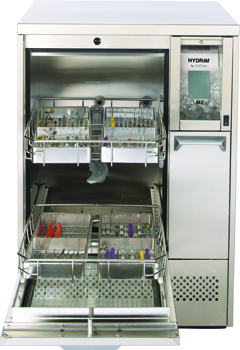

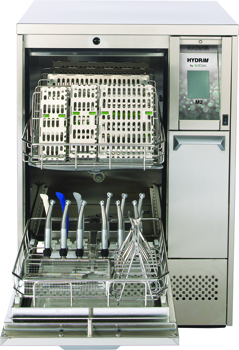

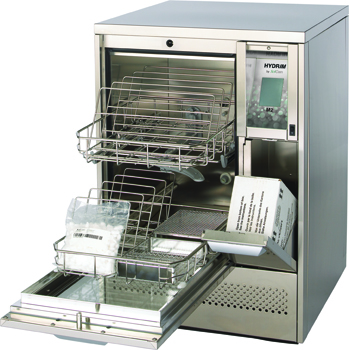

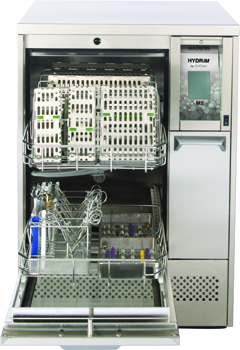

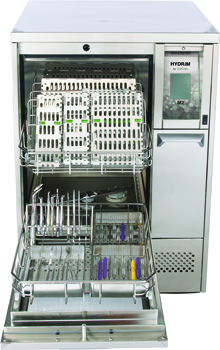

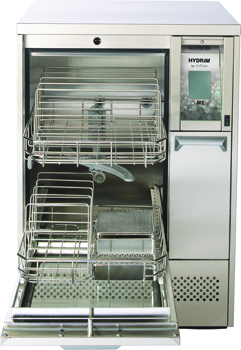

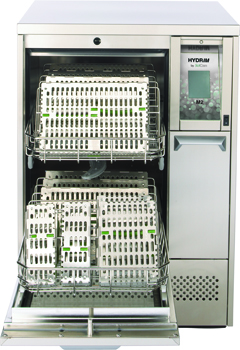

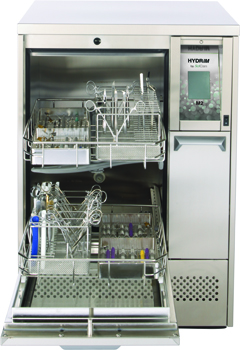

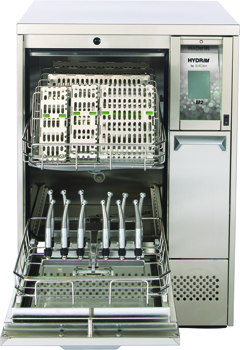

HYDRIM L110w G4 instrument washer |
HYDRIM L110w can process 2,500 instruments in a 10-hour day | HIP cleaning solution is stored in the unit, so no extra storage space requirements |
Large variety of furniture options available | |
CONNECT |
PROTECT |
COLLECT |
The HYDRIM G4 is capable of communicating directly with service personnel or anyone you choose. Should the HYDRIM G4 ever need attention, diagnostic information can be sent via email to pre-selected dealer service reps, significantly reducing down time. |
Patient safety relies on attention to detail. The HYDRIM G4 supports verifiable processes that are PIN protected with user-defined IDs so that staff members can be required to authorize a cycle. This encourages extra attention to process and creates a safer environment for both staff and patient. |
With each cycle, information must be stored to protect your office and your patients. The integrated data logger store all cycle information for the lifetime of the unit. A USB port allows for the manual retrieval of cycle history. The 10/100 Base-T Ethernet connection puts your PC in direct contact with your HYDRIM G4 and the RS232 serial printer port allows you to connect with an external printer. |
HYDRIM MEETS THE INTERNET |
|
A high-resolution, 65K color touch screen offers a vivid display of messages, current cycle information and customizable colors all with extraordinary clarity. Fully adjustable contrast levels let you optimize the screen to the lighting in your steri-center, and its 2.5-inch by 3-inch dimensions allow easy viewing of cycle information. |
HYDRIM L110w G4 SPECIFICATIONS |
|
Dimensions: (w x h x d) | 600 x 850 x 600 mm (23.8” x 33.5” x 23.8”) |
Depth with door open: | 1200 mm / 47” |
Weight: | 80 kg / 176 lbs. |
Cycle Times* | Rinse and Hold 5 mins |
Regular Wash + Dry | 16 mins. + 10 mins. |
Heavy Duty Wash + Dry | 25 mins. + 10 mins. |
Water Consumption Per Cycle: | |
Rinse and Hold | 16 litres / 4.28 gallons |
Regular Wash | 24 litres / 6.34 gallons |
Heavy Duty Wash | 32 litres / 8.45 gallons |
Electrical Connection | |
Electrical Rating: | 208-240V, 12A, 60 Hz |
Running noise: | < 78 dB |
Water and Drain Connections | |
Hot and Cold Water Tap Connection | 3/4” Garden hose, male |
Recommended Hot Water Temperature | 60°C / 140°F |
Cold Water Temperature | < 30°C / 86°F |
Inlet Water Pressure | 1 – 10 bar / 14.5 – 145 psi |
Drain | 2 cm / 3/4” |
Why Use A HYDRIM Automated Washer?
The advantages of automated washing systems over traditional manual cleaning are recognized by the CDC and independent research and testing organizations. If it’s not clean, it can’t be sterilized. SciCan offers the tabletop HYDRIM C51w instrument washer and the newly redesigned floor model HYDRIM L110w to meet the needs of your studio or clinic.
Key benefits to your studio or practice are:
Virtually eliminates hand scrubbing
Protect staff against the hazards of skin puncture and aerosolized contaminants from manual or ultrasonic washing, manual rinsing and manual drying.
Save valuable time
Spend less time on meticulous manual cleaning.
Third party cleaning validation indicates 99.9% protein removal
HYDRIM’S powerful circulation pumps and wash arms, combined with SciCan’s HIP chemical, result in exceptional cleaning performance.
Proprietary Chemical
HIP chemical is a proprietary blend of surfactants (Surface Acting Agents), which are substances that reduce the surface tension of the water and increase its ability to lift debris from instruments. Your valuable instruments are cleaned and protected with HIP!
Consistent repeatable cycles
Ensure that every set of instruments receives the same validated cleaning process, without the variability inherent in manual scrubbing and ultrasonic cleaners.
Fresh water and chemical for each load
A precise amount of liquid cleaning solution is dispensed automatically. In contrast with ultrasonic cleaners, HYDRIM uses fresh water for each cycle.

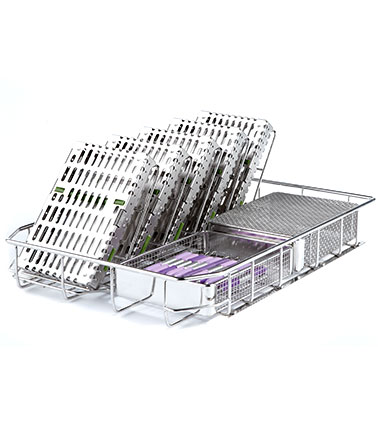

Easily adaptable for either loose instruments or cassettes
Accommodates your current instrument management procedures.
The HYDRIM® Washing System

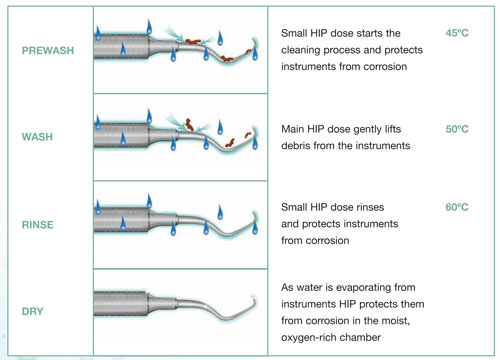

Prior to placing instruments in the HYDRIM, remove gross debris. Then load instruments in cassettes or baskets, place in the HYDRIM, and press start. HYDRIM’s rapid cycles wash, rinse and dry your instruments, preparing them for sterilization in STATIM® or other autoclaves. The HIPTM chemical (HYDRIM Cleaning Solution with Instrument Protection) has been carefully formulated to provide outstanding compatibility with a wide range of materials and coatings. HIP is automatically added at various stages in the cycle to optimize the cleaning and protection of instruments. Independent testing indicates 99.9% protein removal — far beyond the level detectable with the naked eye! Speed, durability, proprietary chemical and software; these are the elements that combine to make HYDRIM the best instrument washing system available.
